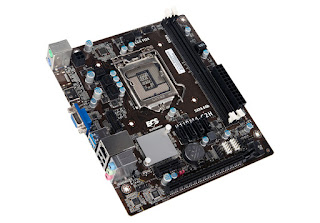

ECS H110M4-C2H Motherboard Intel 1151 DDR4

Nama Barang	Mainboard ECS H110M4-C2H
Harga	RP, 875,000
Kondisi	Baru
Garansi	1 Tahun
Keterangan	ECS H110M4-C2H merupakan Motherboard untuk Processor Intel socket 1151, Motherboard ini menggunaKan 100% Solid Kapasitor, Ram DDR4, USB 3.0, HDMI Full HD 1080, Sata 6Gb/s.
Berat Timbang	- kg

• CPU
  • Supports 7th gen Intel^® Core™ family/ Pentium / Celeron series processors for LGA 1151 socket
  • Supports 6th gen Intel^® Core™ family/ Pentium / Celeron series processors for LGA 1151 socket
  • 100% Solid capacitor design
  • Please refer to CPU support list for details
• CHIPSET
  • Intel^® H110 Express Chipset
• GRAPHICS
  • Supports DirectX^® 12
• MEMORY
  • Dual-channel DDR4 Memory architecture
  • Supports DDR4 2400 non-ECC, Un-buffered SDRAM Memory
  • 2 X 288-pin DDR4 DIMM socket
  • Support up to 32 GB*
  • Note:Please refer to the latest Memory support list for details
• EXPANSION SLOT
  • 1 X PCI Express X16 Gen 3.0 slot(s)
  • 1 X PCI Express X 1 Gen 2.0 slot(s)
• Storage
  • Support by H110 Express Chipset
  • 4 X Serial ATAIII 6Gb/s
• Audio
  • 6-Channel HD audio CODEC
  • Realtek ALC662 6-channel High Definition audio CODEC
• LAN
  • Realtek 8111H Gigabit Fast Ethernet Controller
  • Wake-On-LAN
• USB
  • Support by H110 Express Chipset
  • 4 X USB3.0 port(s) up to 5Gb/s (either rear I/O or front header)
  • 6 X USB2.0 port(s) Up to 480 Mb/s
• REAR PANEL I/O
  • 1 X PS/2 Keyboard & PS/2 mouse connectors
  • 1 X Audio port (Line Out/Line In/Mic In)
  • 1 X RJ-45 port
  • 1 X HDMI port(s)
  • 1 X D-Sub (VGA) port(s)
  • 2 X USB3.0 port(s)
  • 2 X USB2.0 port(s)
• CONNECTORS & HEADERS
  • 1 X 24-pin ATX Power Supply connector
  • 1 X 4-pin 12V Power connector
  • 1 X 4-pin CPU_FAN connector
  • 1 X 4-pin SYS_FAN connector
  • 1 X Front Panel switch/LED header
  • 1 X Front panel audio header
  • 1 X USB 3.0 header
  • Support additional 2 USB ports
  • 2 X USB 2.0 header
  • Support additional 4 USB ports
  • 4 X SATA III 6Gb/s connector(s)
  • 1 X CLR_CMOS header
  • 1 X Serial port header (COM)
• SYSTEM BIOS
  • AMI BIOS with 64 MB SPI Flash ROM
  • ACPI & DMI
  • Dual Display
  • Support GUI UEFI BIOS
  • Multi-Language BIOS
• FORM FACTOR
  • mATX Form Factor
  • 190mm x 170mm
• OS Support
  • Windows 7 32-bit
  • Windows 7 64-bit
  • Windows 8.1 64-bit
  • Windows 10 64-bit
  • * Intel 7^th Generation CPUs support Windows 10 64bit only
• Certifications
  • CE/FCC Certification
  • ErP/EuP Certification
  • WHQL Certification
  • WHCK Certification
• Bundled Software
  • ECS Intelligent EZ Utility : eBLU, eDLU, eSF
